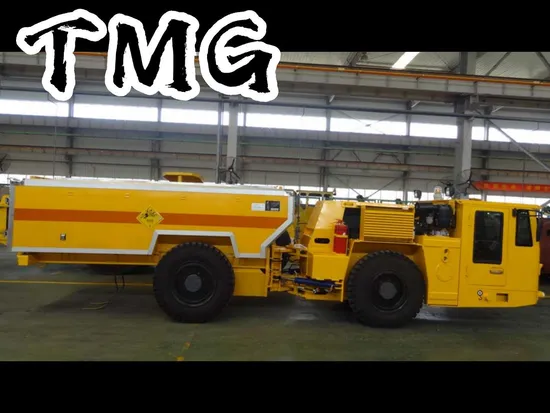

Mining Miner Utility Vehicle Auxiliary Serivice Vehicle Underground Mining Equipment From Tmg

Basic Info

Model NO.	TU312
Warranty	2 Years
Color	While or Customized Color
Customized	Customized
Condition	New
After-sales Service	2 Years
Model	Tu312
Transport Package	Standard
Specification	as request
Trademark	TMG
Origin	China
Production Capacity	200 Units/Year

Product Description

Underground Utility Vehicle TU312 Technical Data

Payload 12 ton Chassis for Underground Mining Multifunction Application
New generation of Drive-Train product lines

UNDERGROUND UTILITY VEHICLE PRODUCT RANGE:

UNDERGROUND UTILITY VEHICLE - MINER CARRIER VEHICLE
UNDERGROUND UTILITY VEHICLE - LUBE TANK FOR UNDERGROUND MINING APPLICATION

UNDERGROUND OIL TANK FOR UNDERGROUND MINING APPLICATION UNDERGROUND SCISSOR LIFT VEHICLE FOR UNDERGROUND MINING APPLICATION


TU312 Underground Mining Utility Vehicle Technical Specifications

Specification	Fuel Tank
Engine F6L914	Volume 112L
Air-Cooled
112 Kw/2300 rpm Tire II Approved	Hydraulic System
	Fixed displacement pump system: Bar L/min/2200rpm
Exhaust system	Hydraulic tank capacity
Catalytic exhaust Gas purifier and muffler	Return oil filtration 10μm
	Indication of level, filtration, temperature
Tranmssion
C273+R32000 series power shift pump drive group 3 speed foward and reverse 4 wheel drive	24 VDC Electrical System
Optional Powerful: C270+R32000 Series	Exposed components are min IP 65 standard

Axle	Battery Lead-Acid 2X115Ah
Planetary type Dana 113 Load end axle fixed or China Axle of XCMG or LiuZhou ZF	Alternator 100A
Angle axle oscillation +/- 10°	Driving halogen light (4+2) 70W
	Working light (2 +2) 70KW
Tyre	LED parking braking and indictor light
12.00-20 TL 20 /14.00-24 TL 24	LED side lights amber
	Side reversing halogen light 70KW
Performance	Rotating beacon, amber
1st 6km/h	Wire harness ( Self extiguishing )with tinned wires and water tight conduits
2nd 12km/h
3rd 25km/h	Cab
Max trative effort 132KN	2 man Cab FOPS /FOPS Approved
Max speed in 1:7 inclined tunnel 9km/h	Air suspended driver's seat
Performance curve:	Seat with retractable Lap seat belt
	Drive convention as Auto vehicle
Brakes	Panel include: Customerized design
Service brake: hydraulically powered dual-circuit oil immerse multidisc brake in both axles	Mico pedal and William pedal location as Auto
Safety/Parking brake: Spring applied hydraulically release fail-safe type brake. Brake testing possible from Cabin	Operation hours
	Fuel level
Steering	Transmission temperature gauge
Hydraulic frame steering	Cooling water temperature gauge
Orbitrol pilot type
Articulation angle: +/- 40°	Greasing system
	Centralized grease fittings for the carriers
	Other optional:
	Fire suppression system Ansul system
	Jack leg at load end with engine end.
	Enclosed Cab with Air-condition

Available Attachment mounted on universal chassis	Engine: Liquid Cooled Turbo charged Comminus QSB4.5 or any compacted design engines for MSHA standard.
a. Lifting platforms ( Hydro Pipe jack or titlting )
b. Crane 12Knm for lifting, Rig crane
c. Grapple for crane
d. sliding safety Roof ( Adjustable for height )
e.Lube Tank (At most 7 kinds of Lube)
f. Miner Carrier

About TMG
TMG is a professional trackless mining equipment, engineering equipment manufacturer.Our production base is located in Qingzhou, Shandong.Our products include: underground trackless mining equipment (underground loaders, underground mining trucks, utility vehicles, drill jumbos, drivetrain system transmission, torque converter, axle); engineering equipment ( wheel loaders, backhoe loaders, excavators, telescopic handlers,graders, articulated dump trucks); drive-train system (transmission, torque converter, axle).

Besides our own mining equipment product, we are also official agent of XCMG product.

Besides,as a technology oriented enterprise, we also provide customers with solutions including drive-train system customization, vehicle transformation and project contracting etc.
