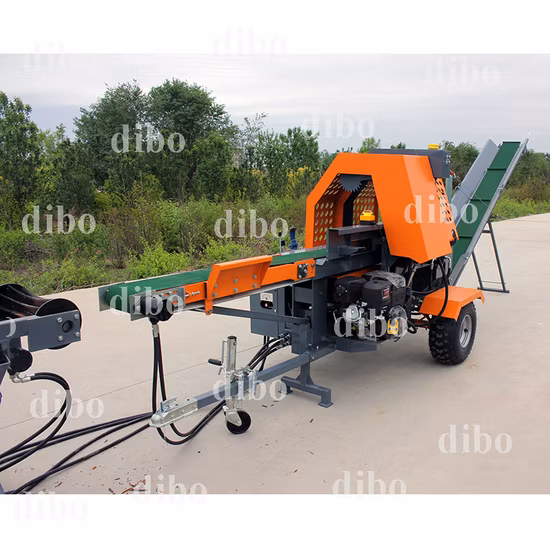

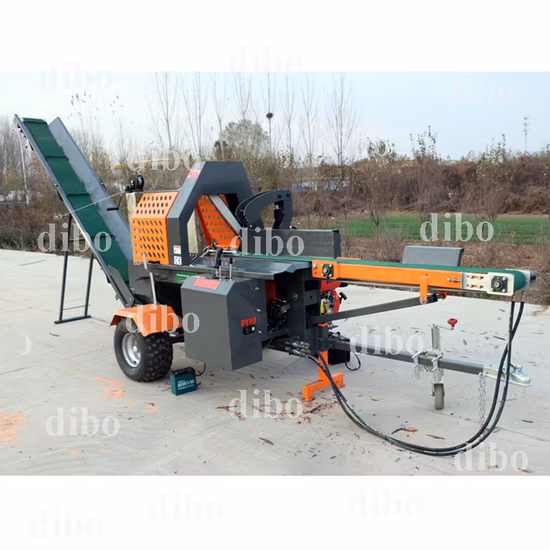

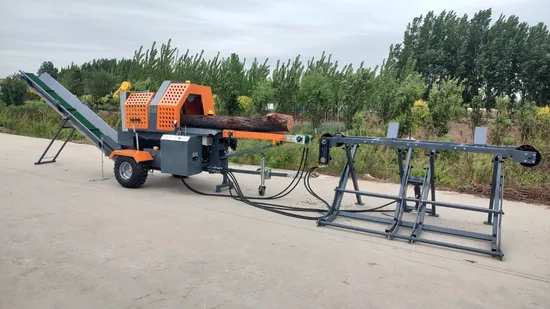

Cut 600mm! ! ! Hydraulic Auxiliary Forest Wood Cutter Firewood Splitter Log Equipment for Tree Cutting Machine

Basic Info

Model NO.	XVF600C
After-sales Service	Online
Warranty	12 Months
Type	Tree Harvester
Power Source	Hydraulic
Certification	ISO9001, CE
Transport Package	Wooden Carton

Packaging & Delivery

Package size per unit product 1140.00cm * 1100.00cm * 870.00cm Gross weight per unit product 25000.000kg

Product Description

Tree Cutting Machine Timber Cutter Saw Head Harvesting Apparatus for Forest

What does a tree harvester do?

Harvesters may be wheeled or tracked machines with a processing head attachment.

The processing head is capable of felling, delimbing, and bucking a tree to desired lengths.

Wheeled harvesters are purpose built machines having four to eight wheels on an articulated chassis.

Tree Harvester Heads Parameters:

Chain Saw	Max.cutting diameter	600±10mm
	Chain tank capacity	4.5L
Feeding	Rollers quantity	2 + auxiliary roller
	Max. feed force of roller	37±5KN
	diameter of roller	611mm
	opening of roller max	430mm
	Max. feed speed	3 to 6 m/s
Delimbing	Knives qty	4+1+1
Hydraulic requirement	Operating pressure	30±2MPa
	Flow required	300±10 L/min
Control system	Control system	Timberwolves control system
Application	Excavator	20 to 25 Ton
Technical specification	Width (head closed/head open)	1000/1500mm
	Length	1500±50mm
	Height	1450mm
	Weight	1380±20kg

Tree Harvester Machine Parameters:

Basic Parameter	Weight	21800kg
	Bucket capacity	1.05m3
	Engine	Xuvol XVF-600C
	Rated power	133/200kW/rpm
	Max cutting diameter	600mm
Performance Parameter	Maximum Torque	657/1500 N.m/rpm
	Discharge Capacity	5.193L
	Bucket digging force	150 kN (ISO)
	Arm Digging Force	107.5 kN(ISO)
	Rotary torque	68.8 kNm
Hydraulic System	Pump flow	2*210
	System pressure	34.3/37
Operation parameter	movable arm	5680mm
	bucket arm	2910mm
	Steering width	2825mm
	Track Shoe Length	4460mm
	Track Gauge	2390mm
Service Refill Capacities	Max.digging reach	9871mm
	Max. digging height	9962mm
	Max. dump height	6527mm
	Max. digging depth	6925mm
	Fuel tank capacity	380L
	Hydraulic tank capacity	227L
	Hydraulic system tank capacity	317L

What machines are used to cut down trees?

A feller buncher is a type of harvester used in logging.

It is a motorized vehicle with an attachment that can rapidly gather and cut a tree before felling it.
